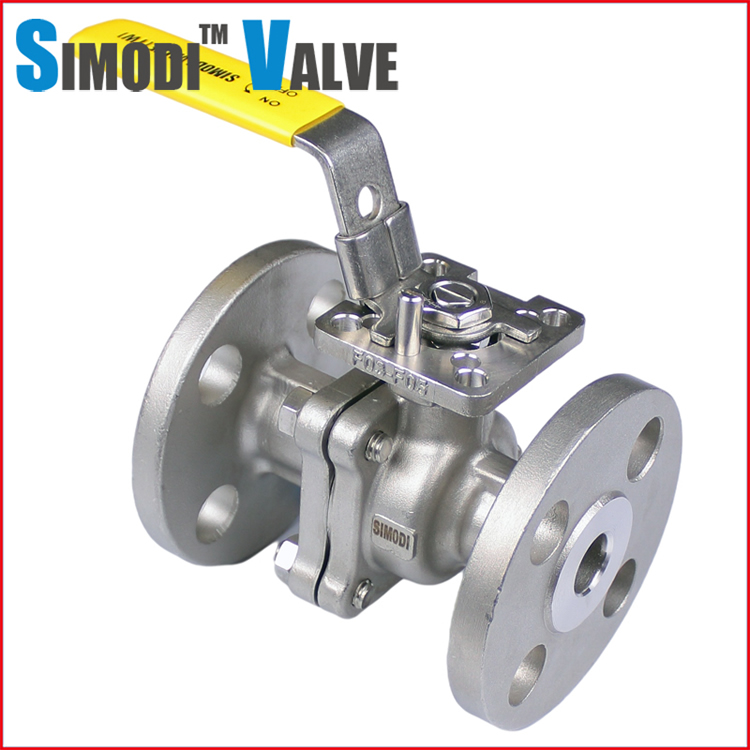

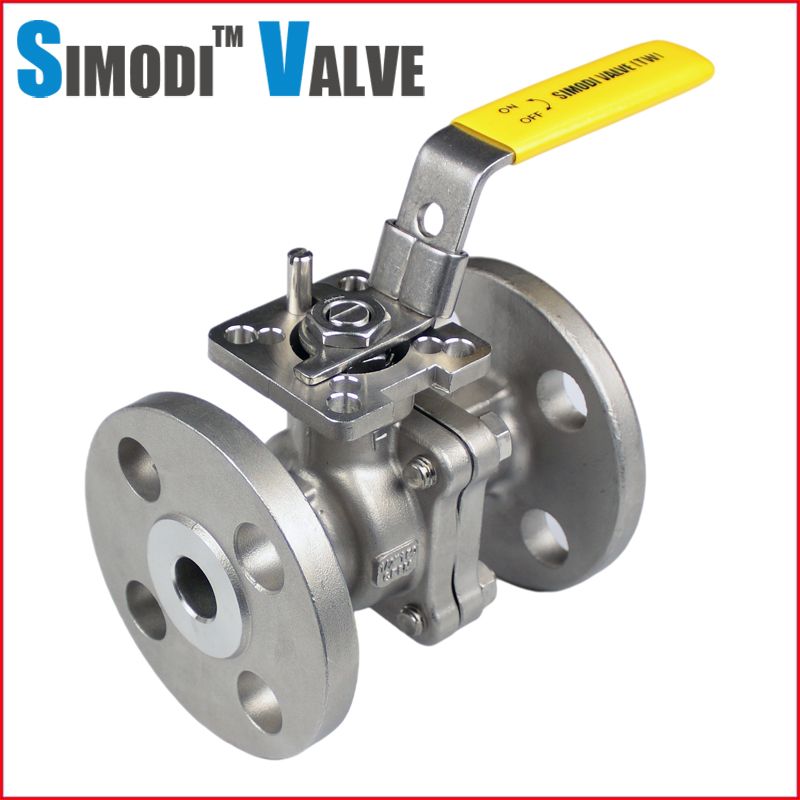

Two Piece Direct Mounted Flanged Ball Valve

The American standard high-platform flanged ball valve can be directly fitted with pneumatic actuators and electric actuators.

Applicable media: Water, oil, gas, and weak acid/weak alkali solutions.

BVB-12DF-150 Two Piece Direct Mounted Flanged Ball Valve

SPECIFICATIONS
* Working Pressure: 1/2”~8”150LBS
*Temperature Range: -15～150℃(PTFE)
*Antistatic Device
*Blow-Out-Proof Stem Design
*Investment Casting  Solution Treatment
*ISO5211 Direct-Mounting of Actuators of Valves Design
*Face to Face：ANSI B16.10
*Flange End:ANSI B16.50
*Full port
*Operator: Lever/Actuator
